Put the Energizer Bunny out of business!

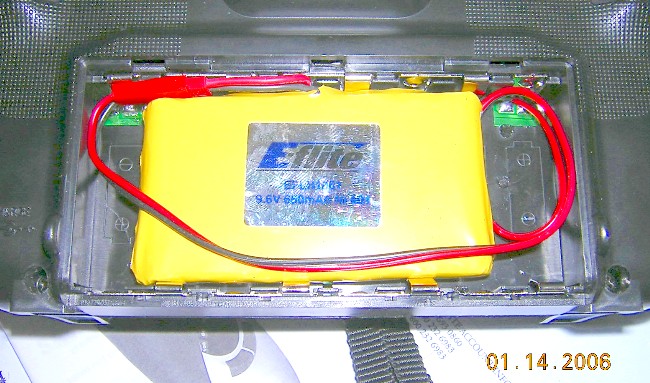

Picture of flattened pack nestled in dry-cell battery tray.

Are you tired of buying AA cells for your Eflite Blade?  I ran Lipos on my Blade from the get go and the 650 mah NiMH 8-cell flight pack was just sitting around.  I couldn't let it go to waste!  And I certainly did not want to buy 8 dry cells.

Here is what I did.  I simply split the pack into 2 x 4 cell units.  I then re-soldered the two units into on 8-cell flat pack.  I then recovered the pack with heat-shrink and soldered in a JST connector to the red/black power leads of the battery tray.  I also jumped the D2 diode with fuse-able fine wire so I could use a peak-detect charger through the charge jack.  I did have to purchase a Futaba-to-JR charge jack since all of my other stuff is Futaba.

Eureka!  A new rechargeable TX for your Blade!
